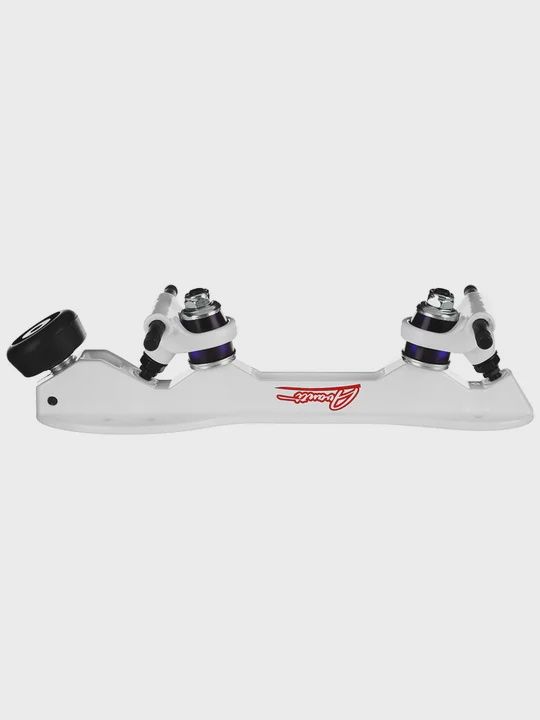

The Sure-Grip Avanti Magnesium plate features a magnesium alloy baseplate with a sleek hollow design that saves weight compared to the Aluminum model. A cool white powder finish covers the entire plate as well as the 10° double action aluminum trucks, which also tout precision milled adjustable pivots. Plate includes Sure-Grip Super Cushions, Carrera speed stop, and mounting hardware.
Included (not pictured): Mounting Kit, Axle Nuts, Hex Key (3/16"), Flat Wrench (3/8" & 1/4")
|
Sure Grip Avanti Magnesium Plate | ||
Baseplate Material | Magnesium Alloy | |
Kingpin Angle | 10° | |
Cushions | Sure Grip Super Cushions | |
Adjustable Pivots | Yes | |
Axle Size | 8mm | |
Toe Stop Type | Adjustable 5/8" (US) | |
Toe Stop Lock | Clamp | |
Weight* | 493g |
*Assembled plate size 4, no toe stops/axle nuts.
We strongly recommend using wheelbase to determine the best plate size. For in-depth information on how to size plates, visit our Learning Center by Clicking Here. US Men's Shoe is an approximation provided as a guideline.
AVANTI PLATE SIZE CHART
Plate Size | Wheelbase (mm) | US Men's Shoe |
---|---|---|
1 | 118 | 2-3 |
2 | 128 | 4 |
3 | 138 | 5 |
4 | 148 | 6-7 |
5 | 158 | 8 |
6 | 168 | 9-10 |
7 | 178 | 11 |
8 | 188 | 12 |
9 | 198 | 13-14 |
